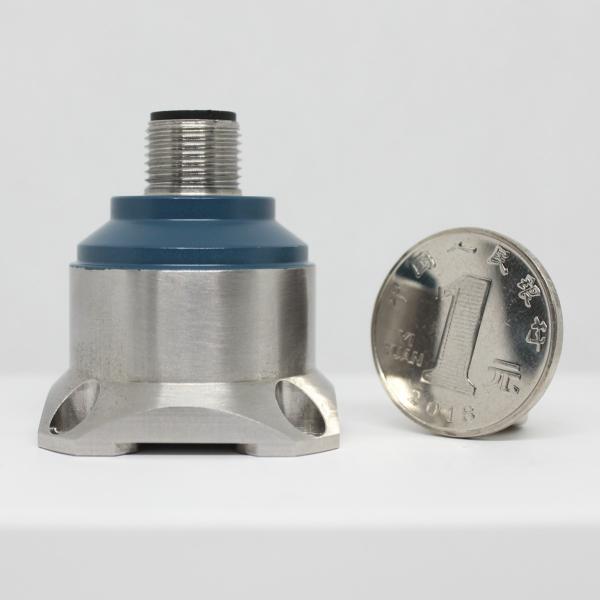

Three Axis 2.4kHz 9 - 36V Accelerometer Vibration Sensor

Name: Three Axis 24kHz 9 36V Accelerometer Vibration Sensor
Brand: RION
Price: 268.00 USD

China Three Axis 2.4kHz 9 - 36V Accelerometer Vibration Sensor wholesale

Model Number : AKG392

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : 1pcs/box

Supply Ability : 500 Piece/Pieces per Month

Price : $268.00/Pieces >=1 Pieces

MOQ : 1

Payment Terms : T/T

Delivery Time : 1 weeks for samples

Certification : CE

Usage : Measure vibraiton amplitude acceleration

Theory : MEMS

Output : Digital Sensor

operation voltage : 9~36V

working temp. : -40~85 celcius degree

weight : <40g

Resonance frequency : 2.4kHz

Output Interface : RS232/RS485/TTL

Contact Now

New Accelerometer Output Speed Vibration Amplitude New Vibration Sensor

▶ MAIN FEATURE

★ Three axes (X, Y, Z)

★ Output signal: RS232; RS485; TTL

★ Power supply voltage: 9-36V

★ Impact resistance: 2000G

★ Working temperature: -40°C ~ +85°C

★ Storage temperature: -40°C ~ +85°C

★ Size: L34.3×W34.3×H38.5mm

★ Excellent deviation stability, good environmental performance (shock, vibration and temperature)

▶ APPLICATION

★ Medical equipment

★ Bridge

★ Automobile

★ Road roller

★ Wind power generation

★ Large machinery, engines

★ Low-frequency vibration and automatic monitoring

★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection

Product Description

▶ PERFORMANCE

AKG392	PARAMETERS						UNIT
Range	±2	±4	±8	±10	±20	±40	g
Bias calibration	<1	<1	<1	<1	<1	<1	mg
Measure axis	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	axis
Power on/off repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Bias temperature coefficient	0.15	0.15	0.15	0.75	0.75	0.75	%/℃(typical)
Resolution/threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	mg(max)
Non-linearity	<0.5	<0.8	<1	<1	<1	<1	% FS(max)
Bandwidth (3DB)	500	500	500	500	500	500	Hz
Cross axis sensitivity	1	1	1	2	2	2	%
Transverse vibration sensitivity ratio	1	1	2	5	5	5	%
Resonance frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
Output rate	5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
Output Interface	RS232/RS485/TTL
Protocol	RION 68 protocol and MODBUS RTU protocol
Reliability	MIL-HDBK-217,Grade 2
Impact resistance	100g@11ms, 3 Axial Direction (Half Sinusoid)
Recovery Time	<1ms(1000g, 1/2 sin 1ms, Impact on the i-axis)
Vibration	20g rms,20~2000Hz (Random noise, o, p, i acts on each axis for 30 minutes)
Input(VDD_VSS)	9~36 VDC
Operating current consumption	<60mA @ 12 VDC
Connector	Industry standard M12 connector
Weight	Product net weight: 82g, Magnetic base: 48g, L-shaped adapter plate 20g
Size	Product size: 34.334.338.5mm Magnetic adsorption base size: 34.2334.236mm L-shaped adapter plate size: 36444mm

Three Axis 2.4kHz 9 - 36V Accelerometer Vibration Sensor

Product Tags:

36V Accelerometer Vibration Sensor

9V Accelerometer Vibration Sensor

2.4kHz Vibration Amplitude Sensor
