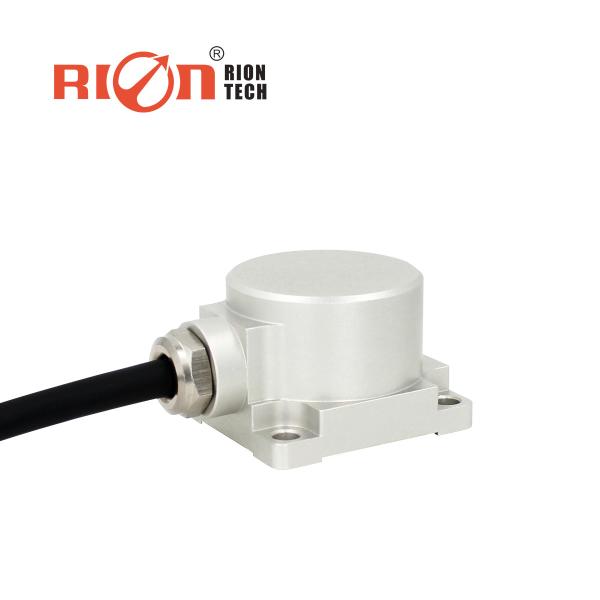

AKM392 Shock Resistant Wind Turbine Vibration Sensor Accelerometer

Name: AKM392 Shock Resistant Wind Turbine Vibration Sensor Accelerometer
Brand: RION
Price: 235.00 USD

China AKM392 Shock Resistant Wind Turbine Vibration Sensor Accelerometer wholesale

Brand Name : RION

Model Number : AKM392

Certification : CE, ISO

Place of Origin : Guangdong, China

MOQ : 1

Price : $235.00/Pieces

Payment Terms : T/T, PAYPAL

Supply Ability : 3000 PCS/MONTH

Delivery Time : 7 days for samples

Packaging Details : 1pcs vibration sensor in each inner box , 50pcs/ctn

Name : Vibratory sensor

output : RS232/RS485/TTL

power supply : DC 9~36V

Deviation calibration : <1mg

Noise density : 21μg/√Hz

Resonant frequency : 2.4kHz

MODBUS automatic output rate : 10Hz、25Hz、50Hz

Contact Now

AKM392 Shock Resistant Wind Turbine Vibration Sensor Accelerometer

▶ PRODUCT APPLICATION

★ Bridge

★ Automobile

★ Roller

★ Wind power

★ Medical equipment

★ Large machinery and engine

★ Low frequency vibration and automatic monitoring

★ Crash recording, fatigue monitoring and prediction

★ Traffic system monitoring, subgrade analysis and high-speed railway fault detection

Specification

AKM392	PARAMETER						UNIT
Measure range	±2	±4	±8	±10	±20	±40	g
Deviation calibration	<1	<1	<1	<1	<1	<1	mg
Measure axis	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	Axis
Power on/off repeatability	<2	<2	<2	<2	<2	<2	Mg (Max)
Temp. coefficient of deviation	0.01	0.01	0.01	0.01	0.01	0.01	%/℃ (typical)
Resolution/Threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	Mg (Max)
Nonlinearity	<0.5	<0.8	<1	<1	<1	<1	% FS (Max)
Bandwidth (3DB)	500	500	500	500	500	500	Hz
Cross-axis sensitivity	1	1	1	2	2	2	%
Transverse vibration sensitivity ratio	1	1	2	5	5	5	%
Noise density	21	21	21	86.6	86.6	86.6	μg/√Hz
Resonant frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
Automatic output rate of 68 protocol	5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
MODBUS automatic output rate	10Hz,25Hz,50Hz
Output interface	RS232/RS485/TTL
Communication protocol	Reifen 68 protocol and MODBUS RTU protocol
Reliability	MIL-HDBK-217, Class II
Impact resistance	100g @ 11ms, triaxial (half sine wave)
Recovery time	< 1ms (1000g, 1/2 sin 1ms, impact on i-axis)
Vibration	20g RMS, 20-2000Hz (random noise, o, p, I 30 min per axis)
Input (VDD _ VSS)	9-36 VDC
Operating current consumption	<60mA @ 12 VDC
Protection	IP67
Material	aerospace aluminum
Weight	Product net weight: ≤116g, magnetic base: ≤50g
Size	Product size: L36 × W32 × H24mm Size of magnetic adsorption base plate: L36 × W32 × H7mm

Size

AKM392 Shock Resistant Wind Turbine Vibration Sensor Accelerometer

ELECTRICAL CONNECTION

Color

Function

RED

BLACK

WHITE

GREEN

DC9～36V

Positive pole of power supply

GND

Negative pole of power supply

RS232(RXD)

Or RS485 (D +)

RS232(TXD)

Or RS485 (D-)

Product Tags:

Wind Turbine Vibration Sensor Accelerometer

Shock Resistant Vibration Sensor Accelerometer

TTL Output Accelerometer Type Vibration Sensor
