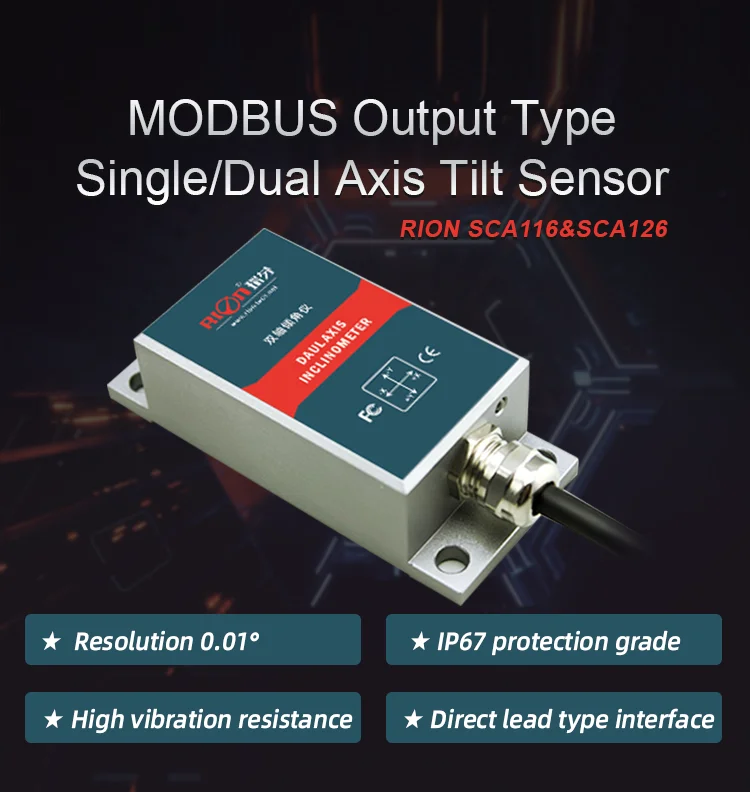

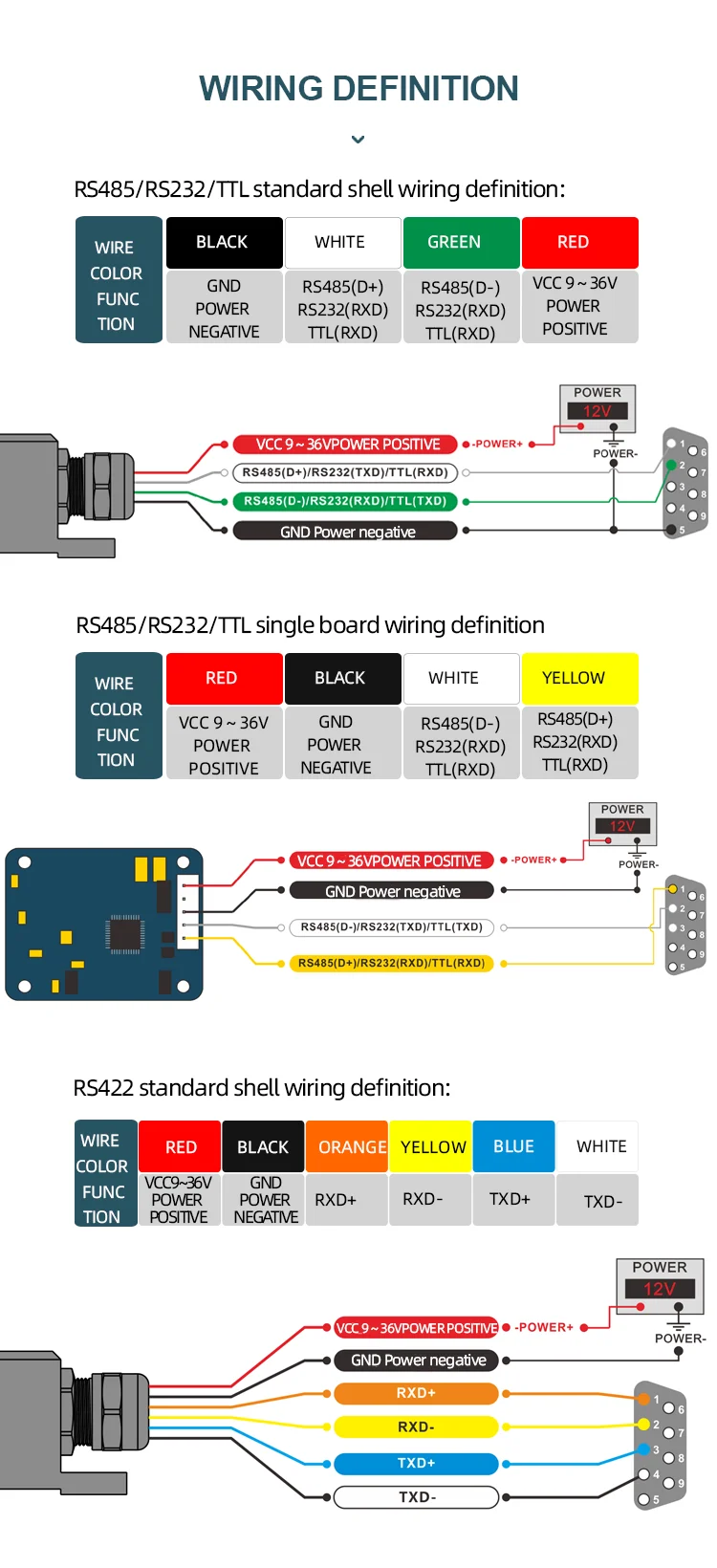

Mems Posital 2 Axis Tilt Sensor Inclinometer RS485/TTL Interface
▶ PERFORMANCE PARAMETERS

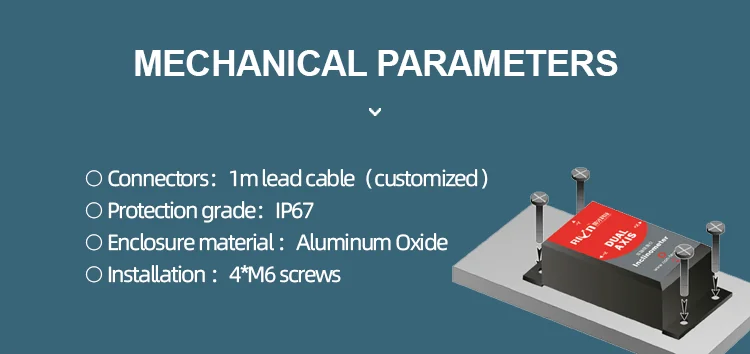

| SCA116T/126T | CONDITION | PARAMETER | UNIT |
| Measure range | | ±10 | ±30 | ±60 | ±90 | ° |
| Measure axis | | X Y | X Y | X Y | X Y | axis |
| Resolution | | 0.01 | 0.01 | 0.01 | 0.01 | ° |
| Measure accuracy | @25℃ | 0.02 | 0.03 | 0.05 | 0.06 | ° |
| Long term.stability | | 0.05 | 0.05 | 0.05 | 0.05 | ° |
| Zero Temp.coefficient | -40～85℃ | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power on time | | 0.5 | 0.5 | 0.5 | 0.5 | S |
| Response time | | 0.02 | 0.02 | 0.02 | 0.02 | s |
| Output rate | 5Hz,15Hz,35Hz,50Hz Optional |
| communication protocol | MODBUS / ROIN 68 Optional |
| EMC | According to EN61000 and GBT17626c |
| MTBF | ≥50000 hours/times |
| Insulation Resistance | ≥100MΩ |
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) |
| Anti-vibration | 10grms,10～1000Hz |
| Protection grade | IP67 |
| Cables | Standard as 1-meter length, wear-resistant, oil-proof, wide temperature, shielded cable 4 * 0.4mm2 |
| Weight | 165g(exclude cable) |
* This performance parameter only lists ± 10 °, ± 30 °, ± 60 °, ± 90 ° series as a reference, for other measurement ranges, please refer to the most adjacent parameters.
▶ INTRODUCTION

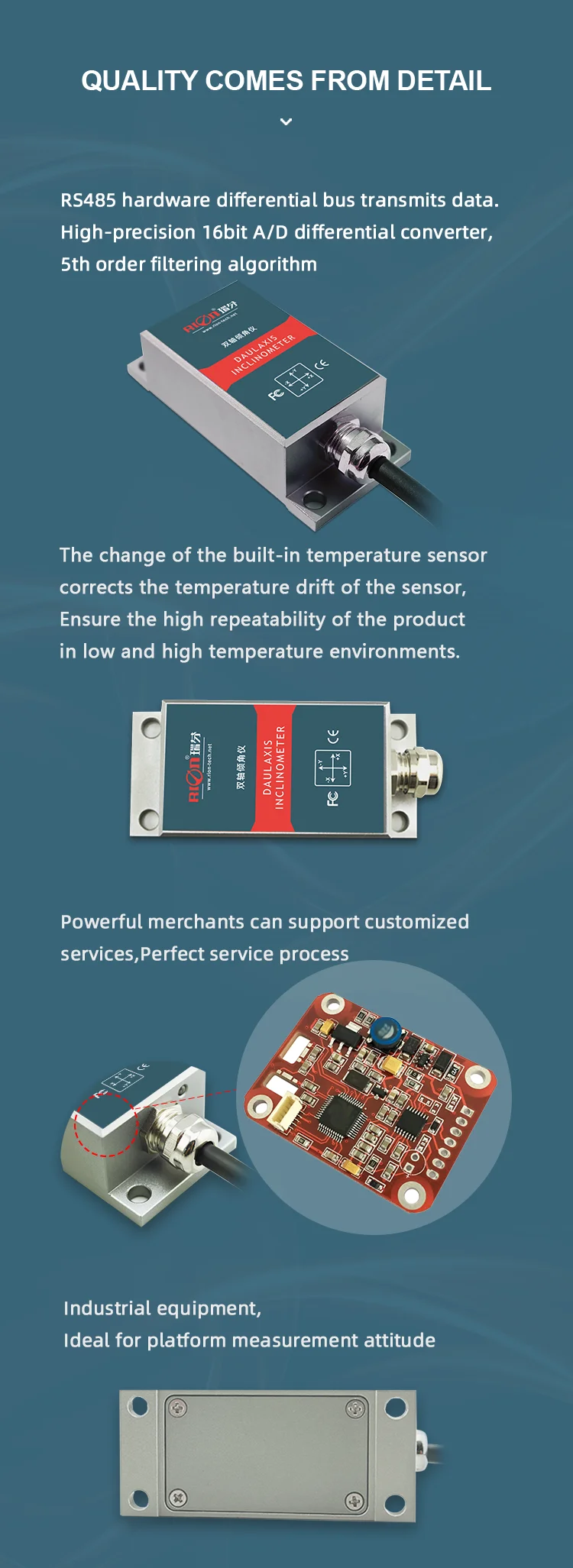

SCA116T & SCA126T is a CAN2.0A output single and dual axis tilt sensor for industrial field control. It adopts industry standard isolated CAN transceiver, built-in high-precision A / D differential converter, and can be measured through a 5th order filtering algorithm. The sensor outputs the tilt and pitch angle relative to the horizontal plane.
the temperature drift of the sensor can be corrected according to the change of the built-in temperature sensor to ensure the high repeatability of the product in low temperature and high temperature environments. The output response frequency standard can be up to 100Hz. If a higher response frequency is required, our company can customize it according to the user. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. Suitable for various harsh industrial control environments.
▶ FEATURES
★ Single and biaxial inclination measurement ★ Range ± 1 ～ ± 90 ° optional
★ DC 9～36V wide voltage input ★ Accuracy: 0.05 °
★ Wide temperature operation -40 ～ + 85 ℃ ★ Resolution 0.01 °
★ High anti-vibration performance> 2000g ★ Direct lead interface
★ Size: L90 × W40 × H26mm ★ Output method: CAN2.0A
▶ APPLICATION
★ Engineering vehicles automatic leveling ★ Bridge & dam detection
★ Aerial platform vehicle, lifter safety & protection ★ Medical facilities angle control ★ Underground drill posture navigation ★ Shield pipe jacking application ★ Based on the angle direction measurement ★ Geological equipment inclined monitoring
★ Mining machinery, oil-well drilling equipment ★ Equipment level control
★ Alignment control, curve control
★ Directional satellite communications antenna pitching angle measurement
